Factory #3603 (Draco XD) SPECIFICATION

Form Factor (Midi, Micro, Mini ITX, Full) Midi ATX Tower

Chassis SPCC : 0.5mm

PSU Form Factor Bottom/ATX

M/B Form Factor ATX、M-ATX、E-ATX (No fan on front)

Front Panel ABS

Top Panel metal cover

Branding Box GameMax standard

Unit 1

Side Panel Left Tempered Glass

Right metal cover

External Drive Bay(s) 5.25" (ODD) *0

3.5" *0

Internal Drive Bay(s) 3.5" (HDD) *2

2.5" (SSD) *2

I/O CONFIG Buttons *2

USB2.0 Port(s) *1

USB3.0 Port(s) USB3.1 GEN1 *1

HD Audio Support *1

Card Reader (Support) *0

P-Lock *0

RGB Controller *1

Controller max. fans *5 RGB and 3pin fan power

RGB Controller max. LED strips *2

Remote (IR or RF) *Top RGB switch

Cooling Fan Support Front 3 x 120mm ARGB Fan-GMX-DBB (Included)

Top 2x120mm ,2x140mm (optional)

Rear 1x120mm ARGB Fan-GMX-DBB(Inlcuded)

Left Side 0

PSU Cover 2x120mm (Fan optional)

Water Cooling Support(Radiator Size) Front 120mm, 140mm,240mm,280mm

Top 120mm, 240mm

Rear 120mm*1

Dust Cover Bottom and top cover with dust filter

Slots *7

Carton & Logo GAMEMAX

Dimensions Chassis (L)360*(W)210*(H)440mm

Full Case (inc Fascia) (L)421*(W)210*（H)460mm

Carton (L)506*(W)*266（H)465mm

Net Weight (Kg) 5.6kgs

Gross Weight (Kg) 6.5kgs

VGA Card Length up to 330mm

CPU Cooler Height 170mm

Cable Management Depth 22mm

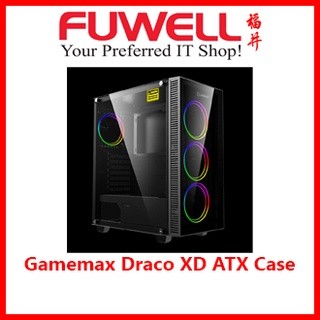

Specifications of Gamemax Draco XD ATX Case

BrandgamemaxSKU2260709499_SGAMZ-13025438549

Technical Details:
