HIKVISION NVR RAID DS-9632NI-I16 CCTV SERVER Security system supplier Security system installation CCTV Security Camera Singapore

CHOICECYCLE CCTV offer the best solutions HIKVISION NVR RAID DS-9632NI-I16 CCTV SERVER Security system supplier Security system installation CCTV Security Camera Singapore.

HIKVISION NVR RAID DS-9632NI-I16: Advanced CCTV Server for Comprehensive Security Solutions

Overview

The HIKVISION NVR RAID DS-9632NI-I16 is a high-performance Network Video Recorder (NVR) designed for large-scale security systems. It supports RAID configurations for enhanced data reliability and storage efficiency, making it an ideal solution for comprehensive surveillance needs. This NVR is perfect for installations in various settings, including commercial properties, public facilities, and large residential complexes.

Key Features

1. High Storage Capacity:

• Up to 16 HDD Bays: Supports up to 16 hard disk drives, allowing for extensive storage capacity to handle large volumes of video data.
• RAID Support: Supports multiple RAID configurations (RAID 0, 1, 5, 6, 10), enhancing data redundancy and reliability.

2. Advanced Video Processing:

• 32-Channel Support: Capable of recording from up to 32 IP cameras simultaneously.
• 4K Resolution Support: Supports high-definition 4K video input and output, providing clear and detailed surveillance footage.
• H.265+/H.265 Compression: Advanced video compression technology reduces bandwidth and storage requirements without compromising video quality.

3. Intelligent Video Analytics:

• Smart Features: Includes advanced analytics such as motion detection, intrusion detection, line crossing detection, and face recognition, enhancing security measures.

4. Network and Connectivity:

• Dual Gigabit Ethernet Ports: Ensures reliable and high-speed network connectivity for efficient data transmission.
• Remote Access: Allows remote viewing and management via mobile apps and web interfaces, providing flexibility and convenience.

5. Robust Security:

• Encrypted Data Transmission: Ensures secure data transmission to protect against unauthorized access.
• User Management: Multiple user permission levels to control access to the NVR and its functions.

6. User-Friendly Interface:

• HDMI and VGA Outputs: Supports dual video outputs for easy local monitoring and setup.
• Intuitive GUI: User-friendly graphical user interface for easy navigation and configuration.

Key Functions

1. Continuous and Scheduled Recording:

• Offers continuous, scheduled, and event-triggered recording modes to meet various surveillance needs.

2. RAID Configuration and Management:

• Supports RAID configuration to enhance data redundancy and reliability, ensuring data protection in case of drive failures.

3. Intelligent Search and Playback:

• Provides advanced search functions, such as timeline search, event search, and smart playback, to quickly locate specific footage.

4. Alarm and Event Management:

• Integrates with various alarm inputs and outputs, allowing for comprehensive event management and alerting.

5. Remote Monitoring:

• Supports remote access via mobile apps (Hik-Connect) and web browsers, enabling real-time monitoring and playback from anywhere.

Advantages

High Data Reliability:

• RAID configurations provide data redundancy, ensuring data integrity and availability even in case of hard drive failures.

Scalability:

• The NVR’s support for up to 32 channels and 16 HDD bays allows for easy expansion as surveillance needs grow.

Advanced Video Quality:

• Supports 4K resolution and H.265+ compression, ensuring high-quality video with efficient storage use.

Enhanced Security Features:

• Advanced video analytics and secure data transmission enhance overall security and monitoring effectiveness.

Ease of Use:

• User-friendly interface and remote access capabilities simplify system management and monitoring.

Benefits

Comprehensive Surveillance:

• Supports extensive camera coverage and high storage capacity, making it suitable for large-scale installations and complex surveillance needs.

Cost-Effective:

• Efficient storage management and advanced compression technology reduce storage costs while maintaining high video quality.

Improved Incident Response:

• Intelligent video analytics and remote monitoring capabilities enable quick identification and response to security incidents.

Data Security:

• RAID support and encrypted data transmission ensure that surveillance data is secure and protected.

Flexible Deployment:

• Suitable for various environments, including commercial properties, public facilities, and large residential complexes, offering flexible and scalable surveillance solutions.

Conclusion

The HIKVISION NVR RAID DS-9632NI-I16 is a powerful and reliable solution for large-scale surveillance needs. With its high storage capacity, advanced video processing, intelligent analytics, and robust security features, it provides comprehensive and effective surveillance. The user-friendly interface and remote access capabilities enhance convenience and ease of use, making it an ideal choice for security system suppliers and installers in Singapore. Trust the DS-9632NI-I16 to deliver high-quality, reliable, and scalable security solutions for any environment.

HIKVISION NVR RAID DS-9632NI-I16 CCTV SERVER Security system supplier Security system installation CCTV Security Camera Singapore

HIKVISION ALARM SYSTEM

HIKVISION ALARM AX HYBRID PRO DS-PHA64-LP  || HIKVISION ALARM AX HYBRID PRO DS-PHA48-EP ||
HIKVISION ALARM LED Wired Keypad DS-PKG-H8L  || HIKVISION ALARM LED Wired Keypad DS-PKG-H4L  || HIKVISION ALARM Wired Keypad DS-PK-L  ||
HIKVISION Wired Dual-Tech AM Curtain Detector DS-PDC10DM-VG3 ||  HIKVISION ALARM Wired PIR AM Curtain Detector DS-PDC10AM-VG3 ||
HIKVISION ALARM Wired 4-way low current relay DS-PM1-O4L-H  ||  HIKVISION ALARM Wired 4-way power relay DS-PM1-O4H-H  ||
HIKVISION ALARM Wired Input Expander DS-PM1-I8O2-H  || HIKVISION ALARM RS485 Input Expander DS-PM-RSI8  ||
HIKVISION ALARM RS485 OUTPUT EXPANDER DS-PM-RSO4  || HIKVISION ALARM RS485 Output Expander DS-PM-RSO4-H  ||

HIKVISION SECURITY SCREENING SYSTEM

HIKVISION Security Screening X-Ray ISD-SC6550S-4CVL  ||  HIKVISION WALK-THROUGH METAL DETECTOR NP-SG101  || HIKVISION Handheld Metal Detector UD23074B

1. Collection from SGCCTV   Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 98534404 for stock level before visit.
2. Payment by PayNow 201207820G

HIKVISION NVR RAID DS-9632NI-I16 CCTV SERVER Security system supplier Security system installation CCTV Security Camera Singapore

[caption id="attachment_26157" align="alignnone" width="212"] Marine Grade CCTV SINGAPORE HIKVISION DS-2XE6222F-IS Security system supplier Security system installation service Hikvision CCTV Security Camera Singapore[/caption]

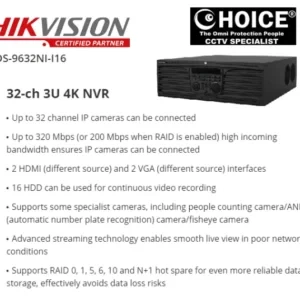

32-ch 3U 4K NVR

• Up to 32 channel IP cameras can be connected
• Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
• 2 HDMI (different source) and 2 VGA (different source) interfaces
• 16 HDD can be used for continuous video recording
• Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

• IP Video Input 32-ch Up to 12 MP resolution
  *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.
• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth256 Mbps
• Incoming Bandwidth (RAID Mode)200 Mbps
• Outgoing Bandwidth (RAID Mode)200 Mbps
• HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA 1 Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA 2 Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode


  HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

  HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Decoding
• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Recording Resolution


  32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF

  *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.

• Synchronous Playback16-ch
• Decoding Capability1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
• Dual-Stream RecordingSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

• Network
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• RAID
• RAID TypeRAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)

• Auxiliary Interface
• Serial Interface1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
• SATA16 SATA interfaces supporting hot-plug
• ESATA1 eSATA interface
• CapacityUp to 10TB capacity for each disk
• Alarm In/Out16/8
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 45 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Chassis3U chassis
• Dimension (W × D × H)445 × 496 × 146 mm (17.5" × 19.5" × 5.7")
• Weight≤ 12.5 kg (27.6 lb)

• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

HIKVISION NVR RAID DS-9632NI-I16 CCTV SERVER Security system supplier Security system installation CCTV Security Camera Singapore
