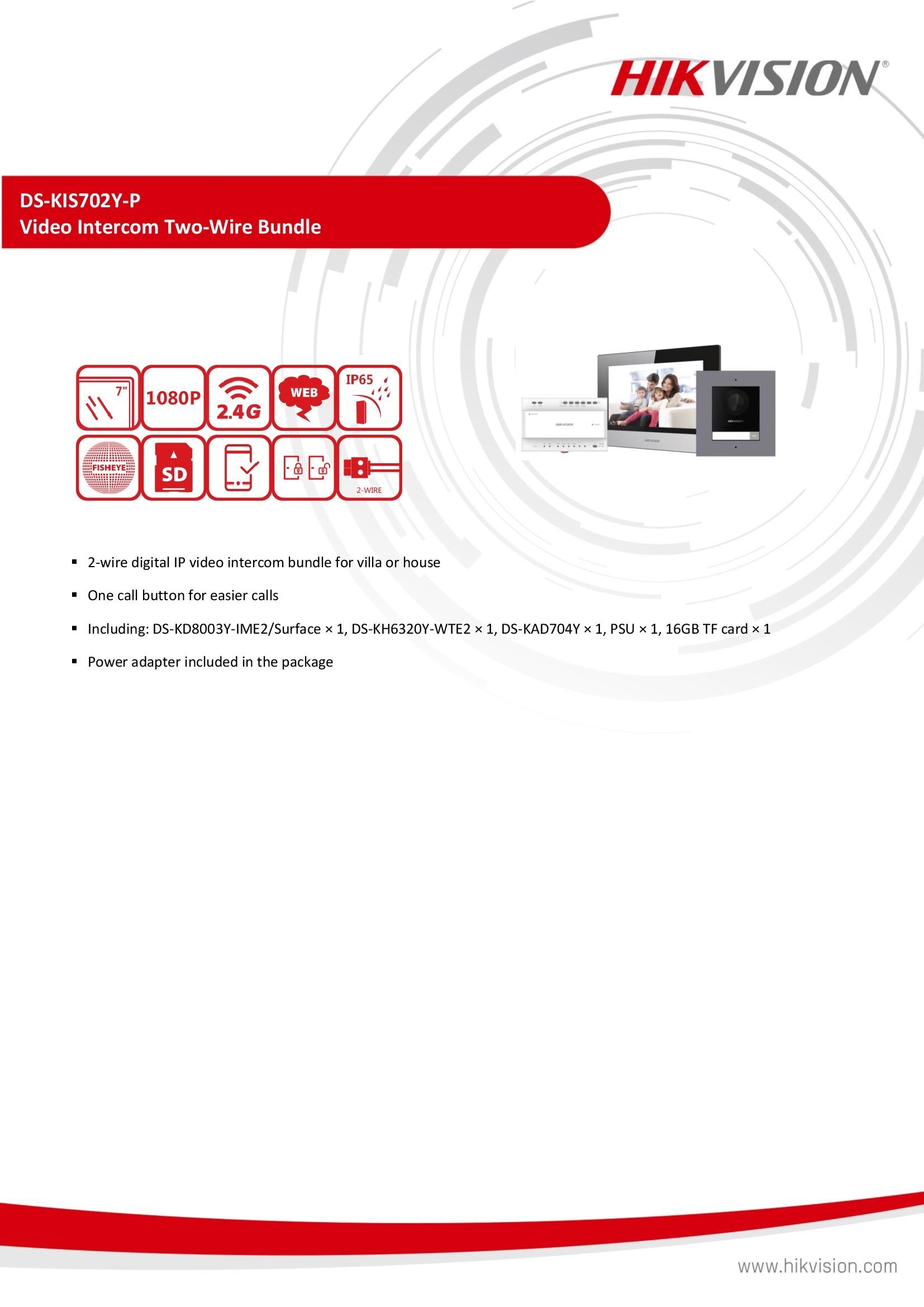

2-wire digital IP video intercom bundle for villa or house

 One call button for easier calls

 Including: DS-KD8003Y-IME2/Surface × 1, DS-KH6320Y-WTE2 × 1, DS-KAD704Y × 1, PSU × 1, 16GB TF card × 1

 Power adapter included in the package

General features

1. Video Capture and Playback:

   • High-resolution video recording.
   • Playback functionality for reviewing recorded footage.

2. Camera Features:

   • Multiple camera support.
   • Pan, tilt, and zoom (PTZ) capabilities.
   • Night vision or infrared capabilities for low-light conditions.

3. Network Connectivity:

   • Ethernet or Wi-Fi connectivity for remote access.
   • Mobile app support for viewing on smartphones and tablets.

4. Storage:

   • Onboard storage options, such as a built-in hard drive.
   • Support for external storage devices or network-attached storage (NAS).

5. Motion Detection and Alerts:

   • Motion detection capabilities to trigger recording or alerts.
   • Notification alerts sent via email, SMS, or mobile app.

6. Remote Monitoring:

   • Access to live video feeds remotely over the internet.
   • Cloud-based storage options for video footage.

7. User Interface:

   • User-friendly interface for configuration and monitoring.
   • Web-based interface or dedicated software for control.

8. Two-Way Audio:

   • Some systems may include two-way audio capabilities for communication.

9. Integration:

   • Integration with other security systems or smart home devices.

10. Security Features:

    • User authentication and access control.
    • Encryption for secure data transmission

Hikvision PoE Switch DS-KIS702Y-P  PoE Switch office storehouse warehouse factory Intelligent PoE Management Design for Video Transmission world-class manufacturer

Door station

System parameters

• Processor Embedded microcontroller
• Operation system Embedded Linux operation system
• Operation mode One touch key

Video parameters

Camera 2MP super definition camera Resolution Mainstream:

• 1920 × 1080, (720p

configurable); sub stream:

• 720 × 480

Night vision Support low light and IR light supplement mode

• Backlight compensation Support

• Digital noise reduction Support

WDR True WDR

Field of view

• Horizontal 146°, vertical 82°

Video Compression Standard H.264

Stream

Main stream:

• 1080p@30fps, 720p@30fps

(configurable);

• sub-stream: D1

Motion detection Support

Flash-avoid frequency

• 50 Hz, 60 Hz

Audio parameters

Audio input

• Built-in omnidirectional microphone

Audio output

• Loudspeaker, 20 cm sound effect > 80 db

Audio quality Noise suppression and echo cancellation

Audio compression standard

• G.711 U

Audio compression Rate

• 64 Kbps

Audio intercom Full-duplex two-way audio intercom

Device interface

• RS-485 1 (1 for Hikvision's sub-module communication)

Debugging port 1

Alarm input 4

• (2 exit buttons and 2 door contacts by default)

Lock control 2

• (2 relay, max to 30 VDC, 2 A)

TAMPER switch 1

• Power interface Two-wire

Technical Details:
