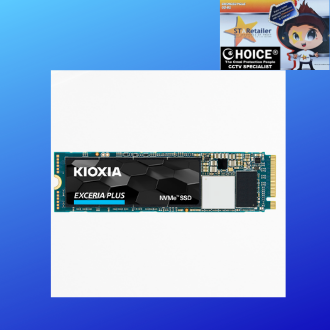

  4. Kioxia EXCERIA PLUS M.2 500 GB TLC NVMe LRD10Z500GG8
Kioxia EXCERIA PLUS M.2 500 GB TLC NVMe LRD10Z500GG8
CHOICECYCLE
Kioxia EXCERIA PLUS M.2 500 GB TLC NVMe LRD10Z500GG8
$155.85
Availability: In Stock
Condition: New
Add to Wishlist
Shipping:
Quantity:
10 in stock
Total:
Will be calculated after you select all properties
Buy Now Enquiry
Sold by Visit Store
CHOICECYCLE
Address:
1 Rochor Canal Road, #02-81 Sim Lim Square 188504
Singapore.
9853 4404
8198 5572
enquiry@choicecycle.com.sg
Add to Cart

Frequently bought together:

Kioxia EXCERIA PLUS M.2 500 GB PCI Express 3.1a TLC NVMe LRD10Z500GG8

Your high-performance gaming system needs high-performance storage. KIOXIA EXCERIA PLUS SSD series is built to deliver enthusiast-class PCIe® performance thanks to a newly designed 8-channel controller that brings out the full potential of its BiCS FLASH 3D flash memory. This new enthusiast-class SSD series offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and mobile systems.

Game-changing Storage
Don't let your storage be outclassed. The KIOXIA EXCERIA PLUS SSD series offer high performance storage for enthusiasts and hardcore gamers that feel held back by commodity storage hardware. With 3,400 MB/s sequential read speed(1) available to you, your system won't be deprived of the storage bandwidth it needs to excel.

Game On!
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe 1.3c technology, the EXCERIA PLUS SSD series reduces latency in your system's I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Small and Mighty
Featuring a thin and light M.2 2280 form factor, the EXCERIA PLUS SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker system.

Cutting Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH and a vertically stacked cell structure, delivering a cutting edge storage experience.

Physical

  • Capacity
    500GB,
  • Form Factor
    500GB: M.2 Type 2280-S3-M
  • Interface
    PCI Express® Base Specification Revision 3.1a (PCIe®)
  • Flash Memory Type
    BiCS FLASH™ TLC
  • Interface Maximum Speed
    32 GT/s (PCIe® Gen3x4L)
  • Dimension (Max: LxWxH)
    500GB: 80.15 x 22.15 x 2.38 mm
  • Interface Command
    NVM Express™ Revision 1.3c command set
  • Weight
    500GB: 8.0 g (typ.)

Performance

  • Max Sequential Read Speed(1)
    3,400 MB/s
  • Max Sequential Write Speed(1)
    500GB: 2,500 MB/s
  • Max Random Read Speed(2)
    500GB: 420,000 IOPS

  • Max Random Write Speed(2)
    500GB: 570,000 IOPS
  • Endurance: TBW (Total Bytes Written)(3)
    500GB: 200 TB
  • MTTF
    1.5 million hours

Environmental

  • Operating Temperature
    0 °C (Ta) to 85 °C (Tc)
  • Storage Temperature
    -40 °C to 85 °C
  • Shock Resistance
    9.806 km/s2 {1,000 G} 0.5 ms half sine wave
  • Vibration
    196 m/s2 {20 G} Peak, 10~2000 Hz, (20 min / Axis) x 3 Axis
  • Supply Voltage
    3.3 V ±5 %
  • Power Consumption
    PS3: 50 mW (typ.)
    PS4: 5 mW (typ.)
  • Power Consumption (Active)
    500GB: 5.1 W (typ.)

Compatibility

  • PCI Express
    Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
  • Connector Type
    M.2 M key Socket
  • Target Applications
    Client desktops and laptops

Additional Features

  • Services and Support
    5-year manufacturer's warranty(4)
  • Performance Optimization
    TRIM, Idle Time Garbage Collection

Ordering Information

  • 500GB
    PN: LRD10Z500GG8
    EAN: 4582563851962

1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)

3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

Kioxia EXCERIA PLUS M.2 500 GB PCI Express 3.1a TLC NVMe LRD10Z500GG8

Technical Details:

Seller SKU: CC81LRD10Z500GG8
Origin: Singapore
Minimum order quantity: 1
Date first listed on Sim Lim Square: Apr 24, 2022

Kioxia EXCERIA PLUS M.2 500 GB PCI Express 3.1a TLC NVMe LRD10Z500GG8

Your high-performance gaming system needs high-performance storage. KIOXIA EXCERIA PLUS SSD series is built to deliver enthusiast-class PCIe® performance thanks to a newly designed 8-channel controller that brings out the full potential of its BiCS FLASH 3D flash memory. This new enthusiast-class SSD series offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and mobile systems.

Game-changing Storage
Don't let your storage be outclassed. The KIOXIA EXCERIA PLUS SSD series offer high performance storage for enthusiasts and hardcore gamers that feel held back by commodity storage hardware. With 3,400 MB/s sequential read speed(1) available to you, your system won't be deprived of the storage bandwidth it needs to excel.

Game On!
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe 1.3c technology, the EXCERIA PLUS SSD series reduces latency in your system's I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Small and Mighty
Featuring a thin and light M.2 2280 form factor, the EXCERIA PLUS SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker system.

Cutting Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH and a vertically stacked cell structure, delivering a cutting edge storage experience.

Physical

  • Capacity
    500GB,
  • Form Factor
    500GB: M.2 Type 2280-S3-M
  • Interface
    PCI Express® Base Specification Revision 3.1a (PCIe®)
  • Flash Memory Type
    BiCS FLASH™ TLC
  • Interface Maximum Speed
    32 GT/s (PCIe® Gen3x4L)
  • Dimension (Max: LxWxH)
    500GB: 80.15 x 22.15 x 2.38 mm
  • Interface Command
    NVM Express™ Revision 1.3c command set
  • Weight
    500GB: 8.0 g (typ.)

Performance

  • Max Sequential Read Speed(1)
    3,400 MB/s
  • Max Sequential Write Speed(1)
    500GB: 2,500 MB/s
  • Max Random Read Speed(2)
    500GB: 420,000 IOPS

  • Max Random Write Speed(2)
    500GB: 570,000 IOPS
  • Endurance: TBW (Total Bytes Written)(3)
    500GB: 200 TB
  • MTTF
    1.5 million hours

Environmental

  • Operating Temperature
    0 °C (Ta) to 85 °C (Tc)
  • Storage Temperature
    -40 °C to 85 °C
  • Shock Resistance
    9.806 km/s2 {1,000 G} 0.5 ms half sine wave
  • Vibration
    196 m/s2 {20 G} Peak, 10~2000 Hz, (20 min / Axis) x 3 Axis
  • Supply Voltage
    3.3 V ±5 %
  • Power Consumption
    PS3: 50 mW (typ.)
    PS4: 5 mW (typ.)
  • Power Consumption (Active)
    500GB: 5.1 W (typ.)

Compatibility

  • PCI Express
    Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
  • Connector Type
    M.2 M key Socket
  • Target Applications
    Client desktops and laptops

Additional Features

  • Services and Support
    5-year manufacturer's warranty(4)
  • Performance Optimization
    TRIM, Idle Time Garbage Collection

Ordering Information

  • 500GB
    PN: LRD10Z500GG8
    EAN: 4582563851962

1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)

3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

Kioxia EXCERIA PLUS M.2 500 GB PCI Express 3.1a TLC NVMe LRD10Z500GG8




Return and Refund Policy:

Same Packing, Unused within 14 days - Repair, Replace, Return & Refundable.
