PAGING/TALKBACK ADAPTOR PD-2 COMPONENTS TB-H/B HANDSETS PA SYSTEM

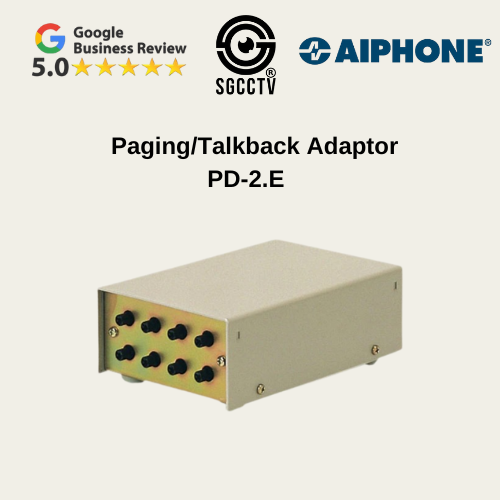

Introducing the PD-2 Paging/Talkback Adaptor.

Key features and benefits:

1. Paging and talkback functionality: The PD-2 allows communication from TD-H handsets to an overhead PA system, enabling clear paging and two-way talkback capabilities, ideal for use in various environments such as schools, warehouses, or hospitals.

2. Single or multi-zone compatibility: The adaptor can be used for single-zone or multi-zone setups, providing flexibility to address different system requirements depending on the size and layout of the area.

3. Music source connection: It includes a music input feature that automatically mutes the music when paging, ensuring that important announcements are heard clearly without distraction.

Specifications:

- Output: 5KΩ, 1.5V max.

- Amp. Input: AUX or PHONO 100K~500KΩ, 0.12V~0.5V

- Music Input: 17KΩ, 0.3V, 1KHz for full output

- Tuner Output: Audio output range: 100mV~1.2V, 10KΩ or less

- Talkback Gain: 40dB, 1KHz at max. volume

- Environmental Noise: Less than 80dB (phono)

- Wire Type: Adaptor to Amplifier: 2-cond., overall shield - use Aiphone #822202. Adaptor to Master Station: 3-cond., overall shield - use Aiphone #822203

The PD-2 Paging/Talkback Adaptor is an essential component for facilitating effective communication within a PA system, providing clear, reliable paging and talkback functions while maintaining ease of integration with existing setups.
