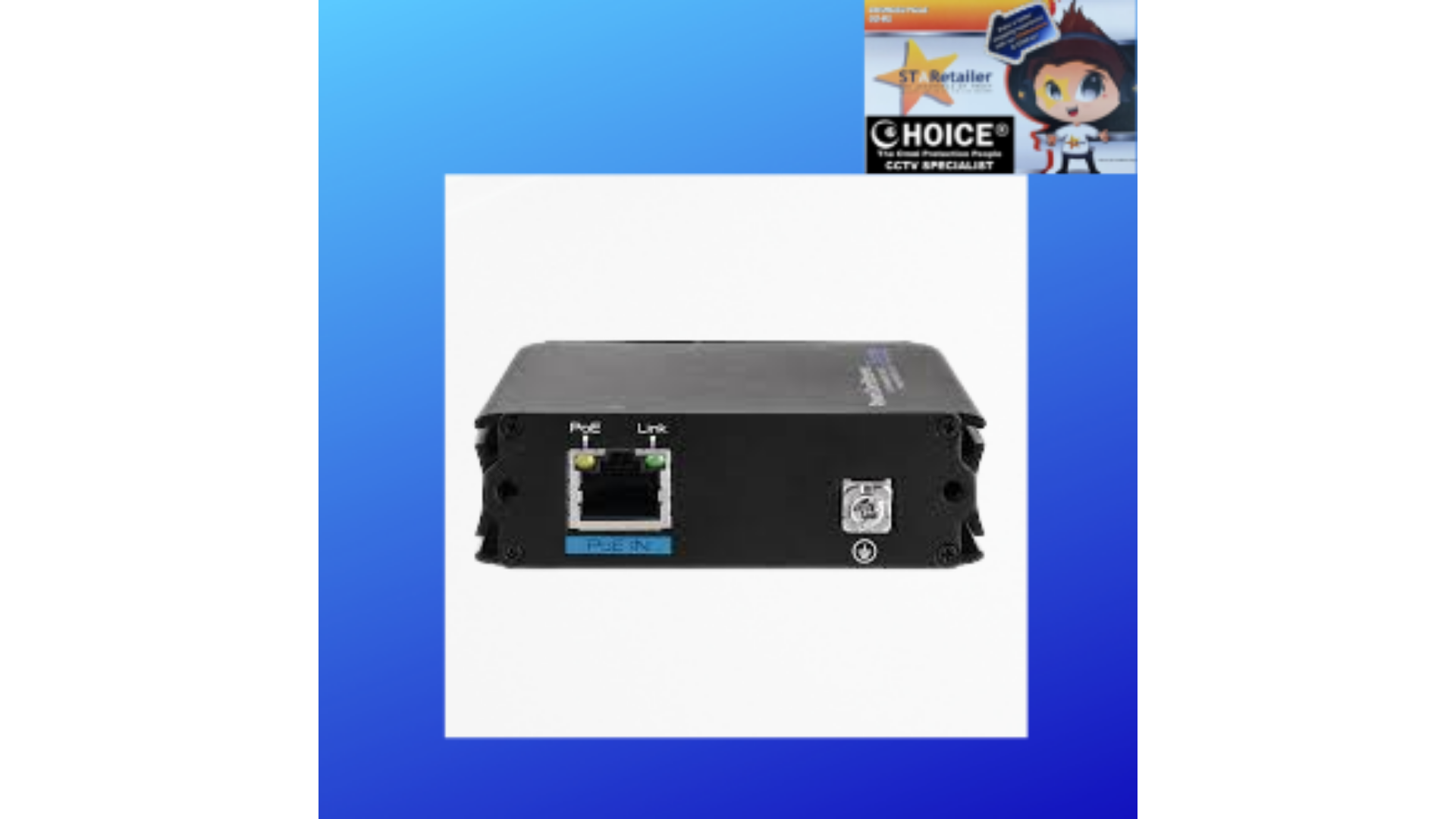

It is a PoE Ethernet repeater, which uses advanced network cable drive and power supply technology to extend 100M Ethernet signal to 200 meters, greatly extending the transmission distance and providing PoE at the same time. It is widely used in security surveillance and network project.
Model | Description |
Power Supply | PoE Power Supply,POE input (IEEE 802.3af/at),DC48V-57V, 30W max. |
PoE Input Port | 10/100Base-Tx RJ45,IEEE 802.3af/at PD port, 30W max |
PoE Output Port | 2*10/100Base-Tx RJ45,IEEE 802.3af/at PSE port.25W max(including DC out) |
PoE Standard | IEEE802.3af / at Power over Ethernet / PSE |
IEEE802.3af / at Power over Ethernet / PD | |
PoE Power Method | End-span |
Standard and Protocols | IEEE802.3,IEEE 802.3u,IEEE 802.3ab |
Transmission Distance | 100m |
About the relationship between distance and power, | |
Please refer to table 1 | |
LED Indicator | PoE IN Port and PoE OUT Port: RJ45 yellow light indicates PoE |
status; green light indicates data exchange | |
ESD Immunity | 1a Contact Discharge Level 3 |
1b Air Discharge Level 3 | |
Per: IEC61000-4-2 | |
Communication Port Anti-thunder Protection | 6KV Per: IEC61000-4-5 |
Operating Temperature | -40℃~75℃ |
Storage Temperature | -40℃~85℃ |
Humidity(Non-condensing) | 0-95% |
Dimension(L×W×H) | 63.2mm×82mm×25mm |
Weight | 154g |
Material | Aluminum |
Color | Black |
1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)
Seller SKU: | CC81RTUTP7201ER-POE |
---|---|
Origin: | Singapore |
Minimum order quantity: | 1 |
Date first listed on Sim Lim Square: | Apr 19, 2022 |
It is a PoE Ethernet repeater, which uses advanced network cable drive and power supply technology to extend 100M Ethernet signal to 200 meters, greatly extending the transmission distance and providing PoE at the same time. It is widely used in security surveillance and network project.
Model | Description |
Power Supply | PoE Power Supply,POE input (IEEE 802.3af/at),DC48V-57V, 30W max. |
PoE Input Port | 10/100Base-Tx RJ45,IEEE 802.3af/at PD port, 30W max |
PoE Output Port | 2*10/100Base-Tx RJ45,IEEE 802.3af/at PSE port.25W max(including DC out) |
PoE Standard | IEEE802.3af / at Power over Ethernet / PSE |
IEEE802.3af / at Power over Ethernet / PD | |
PoE Power Method | End-span |
Standard and Protocols | IEEE802.3,IEEE 802.3u,IEEE 802.3ab |
Transmission Distance | 100m |
About the relationship between distance and power, | |
Please refer to table 1 | |
LED Indicator | PoE IN Port and PoE OUT Port: RJ45 yellow light indicates PoE |
status; green light indicates data exchange | |
ESD Immunity | 1a Contact Discharge Level 3 |
1b Air Discharge Level 3 | |
Per: IEC61000-4-2 | |
Communication Port Anti-thunder Protection | 6KV Per: IEC61000-4-5 |
Operating Temperature | -40℃~75℃ |
Storage Temperature | -40℃~85℃ |
Humidity(Non-condensing) | 0-95% |
Dimension(L×W×H) | 63.2mm×82mm×25mm |
Weight | 154g |
Material | Aluminum |
Color | Black |
1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)
Same Packing, Unused within 14 days - Repair, Replace, Return & Refundable.
