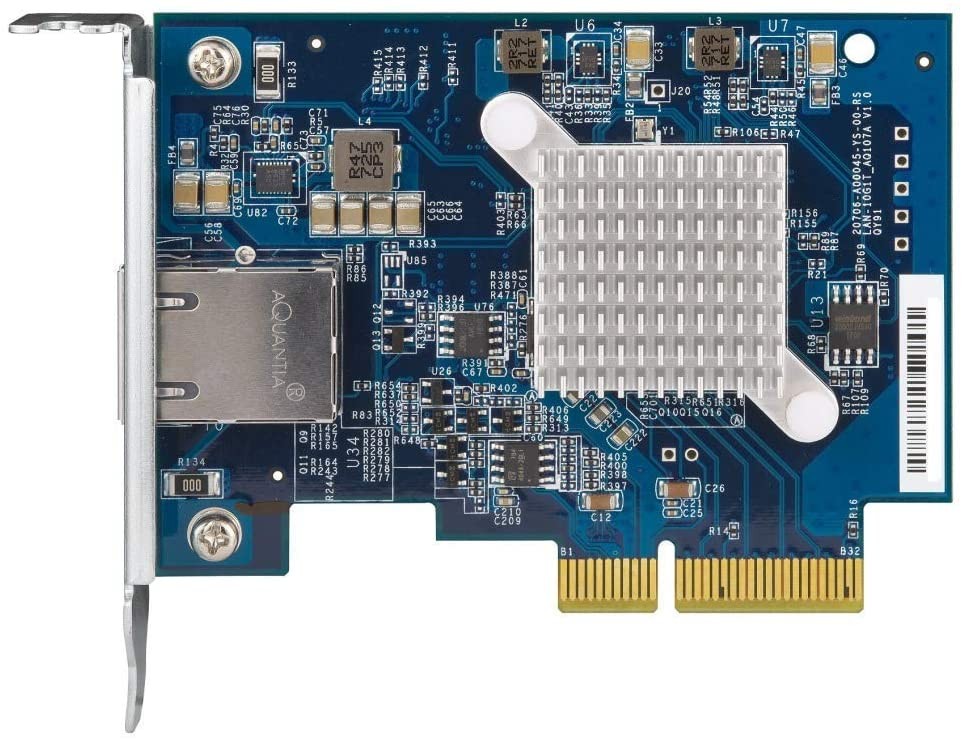

10 GbE network expansion card
The 10 GbE network expansion card delivers speeds of up to 10 Gbps - 10x faster than standard Gigabit Ethernet - to greatly boost data transfer performance.
*QNAP Network Expansion Card does not support Wake-On-LAN (WOL).
|Controller||Marvell AQtion AQC107; Driver download: From Marvell AQtion (not required for QTS)|
|Number of Ports||1 x NBASE-T (RJ45)|
|PCIe and Lanes||PCIe 3.0 x4|
|IEEE Standards||IEEE 802.3an|
|Bracket||Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled|
|Supported NAS operating systems||QTS/QuTS hero (recommend an upgrade to the latest version); Windows (Driver required); Linux (Driver required)|
|Supported QNAP NAS||Models with PCIe slot(s) (1 free slot required)|
|Support Ubuntu Commercial Linux Distribution||Ubuntu 18.04/20.04|
|Support Windows||Windows 8/10|
|Port and Cable||RJ-45; over CAT-6 class cable|
|Package Content||1 x Network card; 1 x QIG; 3 x Brackets|
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
