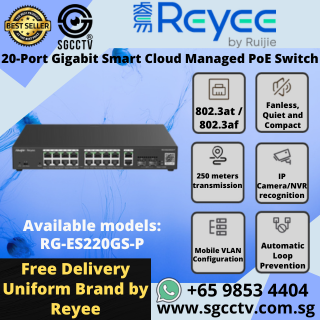

RG-ES220GS-P 20-Port Gigabit Smart Cloud Managed PoE Switch

Overview

The RG-ES220GS-P is a 20-port Gigabit Smart Cloud Managed PoE Switch designed for businesses across various industries, including enterprise, hospitality, factory, education, retail, and surveillance. With 16 PoE+ ports, 2 RJ45 ports, and 2 SFP ports, this switch provides seamless high-speed networking, intelligent power distribution, and advanced cloud management.

Key Features

• High-Capacity PoE+: Supports IEEE 802.3at/af with 16 PoE+ ports and a total 250W power budget.
• Smart Cloud Management: Manage and monitor the switch remotely using the Ruijie Cloud platform.
• Fast & Efficient Networking: Offers a 40 Gbps switching capacity and 29.76 Mpps forwarding rate.
• Enhanced Network Security: Features automatic loop prevention, VLAN configuration, and intelligent PoE adaptation.
• IP Camera/NVR Optimization: Ideal for CCTV and surveillance applications with unique built-in recognition features.
• Compact & Quiet Design: Fanless, noise-free operation for an energy-efficient and reliable network infrastructure.
• Reliable Power & Surge Protection: 4 kV port surge protection to prevent electrical damage.
• Enterprise-Grade Performance: Supports up to 16 VLANs, ensuring flexible network segmentation and enhanced security.

Technical Specifications

• Ports: 18 x 10/100/1000Base-T (16 PoE+), 2 x SFP uplink ports
• PoE Power: 250W total, IEEE 802.3at/af
• Switching Capacity: 40 Gbps
• Forwarding Rate: 29.76 Mpps
• MAC Address Table: 8000 entries
• Maximum VLANs: 16
• Built-in Fan: Operates only when temperature exceeds 25°C
• Port Surge Protection: 4 kV
• Dimensions: 300 mm x 223 mm x 43.6 mm
• Weight: 2.8 kg (with packaging)
• MTBF: > 200,000 hours
• Warranty: 3 years
• Certifications: CE, FCC

Why Choose RG-ES220GS-P?

• Cost-Effective Smart Cloud Solution: Light-weight cloud management for fast response and richer features.
• Optimized for CCTV Networks: 250m transmission, IPC offline alarm, and individual port reboot ensure a stable video surveillance network.
• Effortless Remote Management: Monitor switch statistics, configure VLANs, and provision new devices using the Ruijie Cloud App.
• Robust Enterprise Features: VLAN support, flow control, loop prevention, port isolation, and broadcast storm suppression.

Ordering Information

For more details or to place an order, contact us at enquiry@choicecycle.com.sg or visit SGCCTV Choicecycle for more information.

Contact Us

Store Location: SGCCTV Choicecycle, Sim Lim Square CCTV Specialist #02-81

Operating Hours: 11 AM – 8 PM

WhatsApp: +65 98534404 (for stock inquiries before visiting)

Email: enquiry@choicecycle.com.sg

Website: https://sgcctv.com.sg

Conclusion

The RG-ES220GS-P 20-Port Gigabit Smart Cloud Managed PoE Switch is a feature-rich and scalable networking solution ideal for businesses requiring high-speed data transfer, intelligent power management, and remote cloud monitoring. Whether for enterprise, retail, education, or surveillance applications, this switch delivers efficiency, security, and reliability. Upgrade your network today with SGCCTV Choicecycle!
