SPECIFICATIONS
Model No. SST-SG16B (Black)
SST-SG16W (White)
Material Steel
Motherboard Mini-DTX, Mini-ITX
Drive bay External --
Internal 2.5" x 1
2.5" x 1 or 3.5" x 1 (Occupies front fan mount)
Cooling system Front 80mm x 1 / 92mm x 1 / 120mm x 1
(120mm only allows SFX, SFX-L power supply installation)
Rear 120mm x 1
Side --
Top --
Bottom --
Internal --
Radiator support Front 120mm (Can only install SFX, SFX-L power supply)
Rear 120mm
Side --
Top --
Bottom --
Internal --
Expansion slot 2
Front I/O port USB 3.0 x 2
Combo audio x 1
Power supply Standard PS2(ATX)
Limitation of VGA card Length: 275mm
Width: 147mm
Limitation of CPU cooler Air cooler: 85mm ~ 172mm*
Limitation of PSU 150mm ~ 220mm
Net weight 2.66kg
Dimension 200mm (W) x 232mm (H) x 280mm (D), 13 Liters
7.87" (W) x 9.13" (H) x 11.02" (D), 13 Liters
Extra Support Kensington lock
Remark
* When installing a high tower air cooler, an SFX PSU must be installed as there will be interference when using an ATX PSU. Please refer to manual for more details.

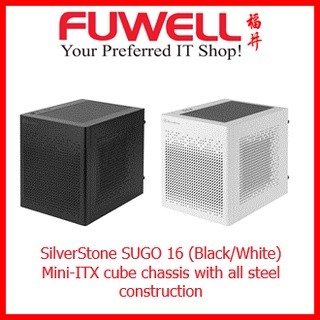

Seller SKU: | SilverStone SUGO 16 Mini-ITX cube chassis |
---|---|
Origin: | Singapore |
Minimum order quantity: | 1 |
Date first listed on Sim Lim Square: | Aug 5, 2022 |
