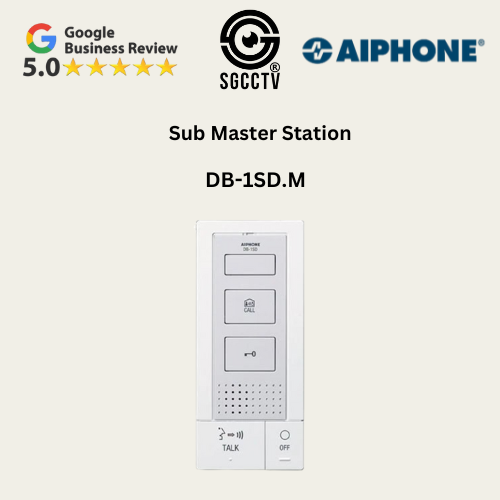

SUB MASTER STATION DB-1SD.M

Introducing the DB-1SD Sub Master Station

Enhance your intercom system with the DB-1SD Sub Master Station, designed specifically for use with the DB-1MD. This sub master station provides additional communication points, making it ideal for larger residences or offices.

Key Features:

• All Call Functionality: Communicate easily with all stations within the same residence or office with just a press of a button.

• External Device Control: The option button allows for control of external devices (N/O dry contact, AC/DC 24V, 1.6A Max), expanding the system’s functionality.

• Adjustable Call Tone: Control the call tone volume with an LED mute indicator, ensuring you can manage notifications according to your preference.

• Receive Volume Control: Customize the volume for incoming calls for optimal clarity during conversations.

• Optional Call Extension: Connect an optional Call Extension Speaker (IER-2) for enhanced audio coverage in larger areas.

• External Signaling Capability: Use the RY-ES to signal third-party bells or lights, providing additional alert options.

• Door Release Button: Conveniently unlock doors with the door release button, powered directly by the door station.

Performance Specs:

• Communication Options: Supports hands-free (VOX) or push-to-talk (simplex) modes, offering flexible communication methods.

Wire Type:

• Entrance Station to Tenant Master Station: Use Aiphone #871802 (2-cond., low cap, PE insulation, solid, non-shielded).

• Tenant Master Station to Tenant Sub Station: Use Aiphone #871804 (4-cond., low cap, PE insulation, solid, non-shielded).

• Between Tenant Sub Stations: Use Aiphone #822206 or #871804 (4-cond. + 2-cond. when sharing power).

Distance Capabilities:

• Power Supply to Tenant Master Station: 180 feet (22AWG) or 510 feet (18AWG).

• Tenant Master Station to Farthest Tenant Sub Station: 330 feet.

• Power Supply to Entrance Station (cumulative): 360 feet (22AWG) or 1,020 feet (18AWG).

The DB-1SD Sub Master Station is a valuable addition to your DB Series intercom system, providing enhanced communication and control options throughout your space. Upgrade your setup today for greater convenience and functionality!
