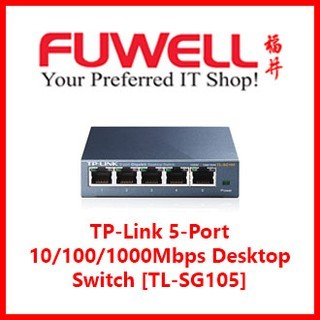

TP-Link 5-Port 10/100/1000Mbps Desktop Switch [TL-SG105]

5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Green Ethernet technology saves the power up to 84%

IEEE 802.3x flow control provides reliable data transfer

Steel housing, desktop or wall-mounting design

Support 802.1p/DSCP QoS* and IGMP Snooping function

Plug and play ,no configuration needed

* For V2 and later version

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity Fanless

Power Consumption Maximum: 3.2W (220V/50Hz)

External Power Supply External Power Adapter (Output: 9VDC / 0.6A)

LED Indicator System Power

Link, Speed and activity indicators per port built into each RJ-45 port

Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

Max Power Consumption 2.3 W (220 V/ 50 Hz)

Max Heat Dissipation 7.83 BTU/h

PERFORMANCE

Packet Forwarding Rate 7.4Mpps

MAC Address Table 2K

Packet Buffer Memory 1Mb

Jumbo Frame 15KB

SOFTWARE FEATURES

Advanced Features Green Technology, saving power up to 84%

802.3X Flow Control

802.1P/DSCP QoS (for V2 and later version)

IGMP Snooping

Transfer Method Store and Forward

OTHERS

Certification CE, FCC, RoHS

Package Contents 5-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Environment Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing
