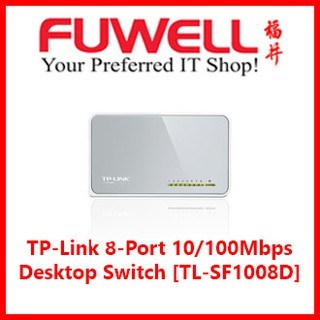

TP-Link 8-Port 10/100Mbps Desktop Switch [TL-SF1008D]

8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX

Green Ethernet technology saves the power up to 60%

IEEE 802.3x flow control provides reliable data transfer

Plastic case, desktop design

Plug and play, no configuration required

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x

CSMA/CD

Interface 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity Fanless

Power Supply External Power Adapter(Output: 5.0VDC / 0.6A)

Power Consumption Maximum: 2.2W (220V/50Hz)

External Power Supply 100-240VAC, 50/60Hz

Buffer Size 2Mb

Data Rates 10/100Mbps at Half Duplex ;

20/200Mbps at Full Duplex

LED Indicator Power, 1, 2, 3, 4, 5, 6, 7, 8

Dimensions ( W x D x H ) 5.3*3.1*0.9 in. (134.5*79*22.5mm)

Max Power Consumption 2.05W(220V/50Hz)

Max Heat Dissipation 6.99BTU/h

SOFTWARE FEATURES

Transfer Method Store and Forward

Advanced Functions Green Technology, saving power up to 60%

802.3X Flow Control, Back Pressure

OTHERS

Certification FCC, CE, RoHS

Package Contents 8-Port 10/100Mbps Desktop Switch

Power Adapter

User Guide

System Requirements Microsoft® Windows®, XP, Vista or Windows 7, Windows 8, Mac® OS, NetWare®, UNIX® or Linux.

Environment Operating Temperature: 0°C~40°C (32°F~104°F);

Storage Temperature: -40°C~70°C (-40°F~158°F);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
