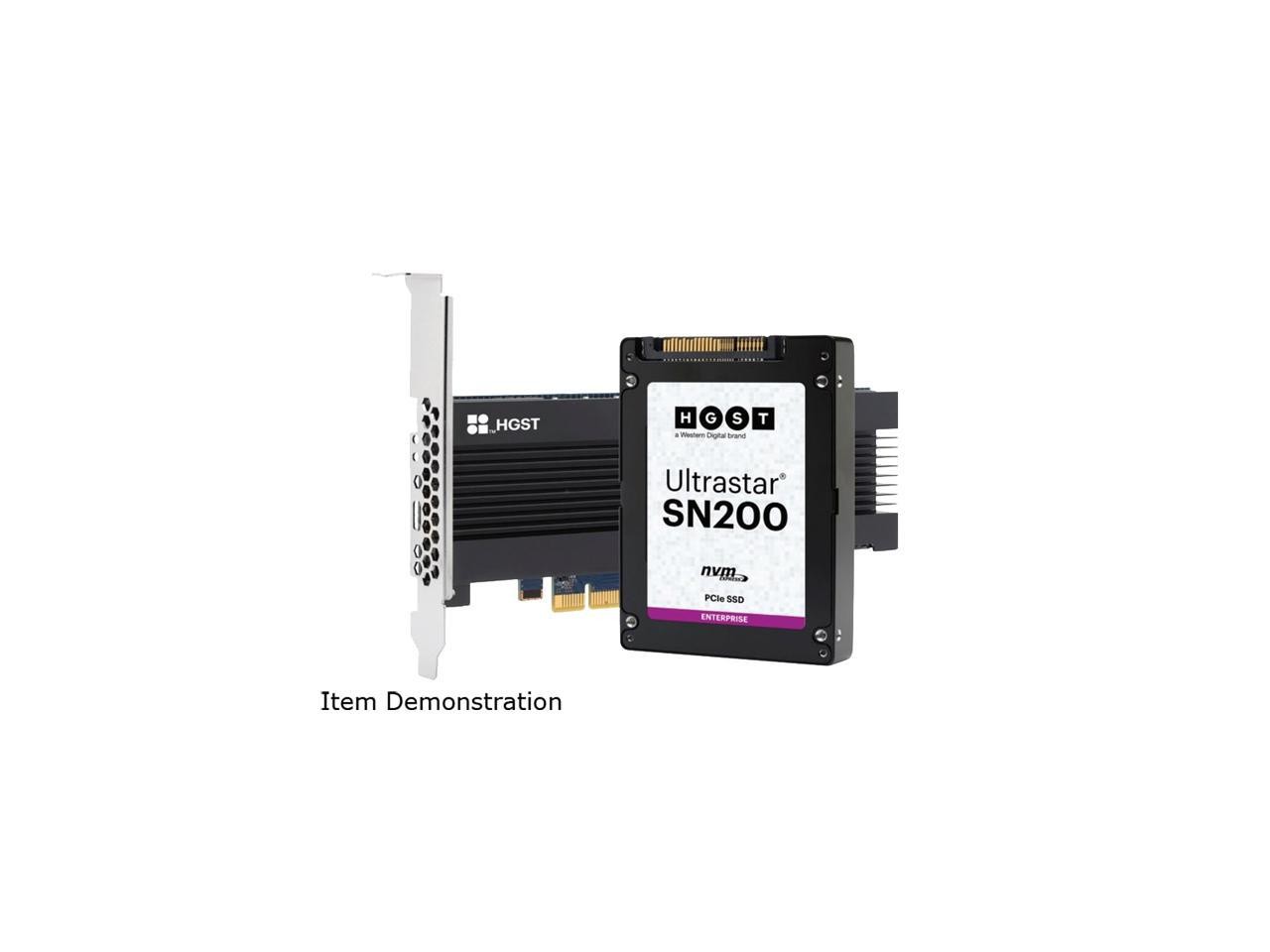

Ultrastar SN200 Series
PCIe SSDs for Application Acceleration
HGST extends its technology leadership with the introduction of the Ultrastar® SN200 Series solid-state drives (SSDs). The Ultrastar SN200 Series SSDs deliver a new level of performance and capacity for Enterprise, Cloud and Hyperscale environments. Enabling faster intelligence in the expanding digital demands of business applications the Ultrastar SN200 Series SSDs are a reliable resource for fast access to critical data. The HGST Ultrastar SN200 Series SSDs double the speed of the previous generation within the same power envelope. By offering exceptional 560,000 mixed read/write random 70/30 4KiB I/O performance on the 6.4TB HH-HL add-in card (AIC), the Ultrastar SN200 Series SSD will enable OLTP applications to scale to new levels.

Ultra-Low Latency and High Quality of Service (QoS)
To meet Tier 1 enterprise service level agreements (SLAs), data center managers need high QoS from their storage infrastructure. The HGST Ultrastar SN200 Series SSD delivers a 30% improvement over its predecessor providing consistent low latency as the device reaches its highest levels of throughput. The combination of high throughput performance and predictable low latency delivers extreme performance for today’s data intensive applications.

High Density Supports Data Growth
Delivering capacities up to 7.68TB in both form factors for 1 drive write per day (DW/D) and 6.4TB for 3 DW/D endurance ratings, the Ultrastar SN200 Series SSD delivers twice the density as its predecessor. In fact, at 7.68TB this product family delivers the highest density in both 2.5-inch SFF and HH-HL add-in card (AIC) form factors amongst NVMe-compliant devices at the time of its market introduction, providing swift access to even more data.

HGST Enterprise Storage Experience in Dual Port
HGST leverages decades of enterprise storage design expertise in high performance and high reliability to deliver its first dual-port NVMe PCIe SSD 2.5-inch drive. The dual-port feature supports two redundant paths to an SSD, ensuring access to data in the event of a failure in the data path. The dual-port option is available in all models of the Ultrastar SN200 SSD 2.5-inch SFF drive.

HGST Quality and Reliability
HGST Ultrastar SN200 Series SSD family extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data. HGST Ultrastar drives are backed by a 5-year limited warranty and an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a complete portfolio of SSD/HDD solutions to satisfy today’s monumental computing needs

Highlights

• High-performance PCIe Gen 3 & NVMe™ 1.2 compliant
• Storage capacity up to 7.68TB in both 2.5-inch SFF and HH-HL add-in card (AIC) form factors
• Ultra-low consistent latency
• Dual port (2x2) support for 2.5-inch drives for highly available system designs
• Superior enterprise-grade reliability: Flash-aware RAID, end-to-end data path protection, advanced ECC, secure erase, PowerSafe™ power-loss protection

Applications & Workloads

• Highest performance tier enterprise storage
• Databases supporting mission critical applications
• Cloud and Hyperscale computing
• Online Transaction Processing (OLTP) and Online Analytical Processing (OLAP)
• High Frequency Trading (HFT)
• Virtualization

  Ultrastar SN200
  Model Number	0TS1355
  Alt Model Number	HUSMR7619BDP3Y1
  Capacity	960GB TO 7680GB
  Configuration
  Interface	PCIe 3.0 x4 or 2x2 NVMe 1.2
  Form Factor	SFF 2.5-inch drive
  Endurance (Drive writes per day)	1
  Performance
  Sequential Read (max MB/s, 128KiB)	3,300
  Sequential Write (max MB/s, 128KiB)	2,100
  Random Read (max IOPS, 4KiB)	830,000
  Random Write (max IOPS, 4KiB)	75,000
  Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)	240,000
  Write Latency 512B (μs)	20
  Reliability
  Error Rate in bits read	<1 in 10^17
  MTBF	2M hours
  Annual failure rate (AFR)	0.44%
  Data Retention	3-month at 40°C
  Power
  Requirement (DC +/- 5%)	3.3V (aux) & 12V
  Operating (W, typical)	25
  Idle (W)	9
  Physical size
  z-height (mm)	15
  Dimensions (width x depth, mm)	100.45 x 69.85
  Weight (g, max.)	184 / N/A
  Environmental (non-operating)
  Temperature	0°C to 70°C (Case)
  Airflow (LFM)	N/A
