CHOICECYCLE

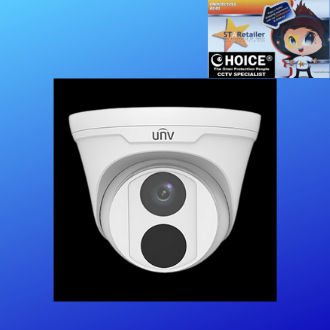

UNV 5MP Fixed Dome Network Camera IPC3615LR3-PF28-D
$80
Availability: In Stock
Condition: New
Shipping:
Quantity:
9 in stock
Total:
Will be calculated after you select all properties
Buy Now Enquiry
CHOICECYCLE
Address:
1 Rochor Canal Road, #02-81 Sim Lim Square 188504
Singapore.
9853 4404
8198 5572
enquiry@choicecycle.com.sg
Add to Cart

UNV 5MP Fixed Dome Network Camera IPC3615LR3-PF28-D


Optics

  • Day/night functionality
  • Smart IR, up to 30 m (98 ft) IR distance
  • 3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265,H.264,MJPEG
  • ROI (Region of Interest)

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis


Camera

Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Minimum Illumination

Color: 0.01Lux (F2.0, AGC ON)

0Lux with IR

Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 100000s
Adjustment anglePan: 3° to 360°
S/N>52dB
WDRDWDR


Video

Max. Resolution
2591*1944
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame Rate

Main Stream: 5MP (2592*1944), Max 20fps;

Sub Stream: 720P (1280*720), Max 20fps

Video Bit Rate
128 Kbps~16 Mbps
H.264 code profileBaseline profile, Main profile
OSDUp to 4 OSDs
Privacy Mask
Up to 4 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas



White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Supported
Flip
Normal/Vertical/Horizontal/180°
Dewarping
N/A
HLC
Supported
BLC
Supported


Network

ProtoclsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration
ONVIF (Profile S, Profile T), API
Client
EZStation, EZView, EZLive
Web Browser


Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+



Interface

Network
10/100M Base-TX Ethernet


Certifications

Certifications

CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15



General

Power


DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4W


Dimensions (Ø x H)
Φ118 x 96mm (Φ4.6” x 3.8”)
Weight
0.35kg (0.77lb)
Material
Metal + plastic
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection
2KV
Ingress Protection
IP67
Vandal Resistant

IK10


1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.

4. Can issue e-Invoice for your accounting. (upon request)

UNV 5MP Fixed Dome Network Camera IPC3615LR3-PF28-D


Technical Details:

Brand: UNV
Model number: IPC3615LR3-PF28-D
Seller SKU: CC81RTIPC3615LR3-PF28-D
Origin: Singapore
Minimum order quantity: 1
Date first listed on Sim Lim Square: Mar 8, 2022

UNV 5MP Fixed Dome Network Camera IPC3615LR3-PF28-D


Optics

  • Day/night functionality
  • Smart IR, up to 30 m (98 ft) IR distance
  • 3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265,H.264,MJPEG
  • ROI (Region of Interest)

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis


Camera

Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Minimum Illumination

Color: 0.01Lux (F2.0, AGC ON)

0Lux with IR

Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 100000s
Adjustment anglePan: 3° to 360°
S/N>52dB
WDRDWDR


Video

Max. Resolution
2591*1944
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame Rate

Main Stream: 5MP (2592*1944), Max 20fps;

Sub Stream: 720P (1280*720), Max 20fps

Video Bit Rate
128 Kbps~16 Mbps
H.264 code profileBaseline profile, Main profile
OSDUp to 4 OSDs
Privacy Mask
Up to 4 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas



White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Supported
Flip
Normal/Vertical/Horizontal/180°
Dewarping
N/A
HLC
Supported
BLC
Supported


Network

ProtoclsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration
ONVIF (Profile S, Profile T), API
Client
EZStation, EZView, EZLive
Web Browser


Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+



Interface

Network
10/100M Base-TX Ethernet


Certifications

Certifications

CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15



General

Power


DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4W


Dimensions (Ø x H)
Φ118 x 96mm (Φ4.6” x 3.8”)
Weight
0.35kg (0.77lb)
Material
Metal + plastic
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection
2KV
Ingress Protection
IP67
Vandal Resistant

IK10


1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.

4. Can issue e-Invoice for your accounting. (upon request)

UNV 5MP Fixed Dome Network Camera IPC3615LR3-PF28-D





Return and Refund Policy:

Same Packing, Unused within 14 days - Repair, Replace, Return & Refundable.
