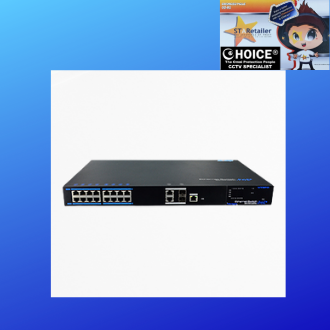

Model Number | UTP7216E-POE-L2 |
Downstream Ports | 16* 10/100Base-TX (PoE) |
Uplink Ports | 2*1000Base-X SFP Port and 2*10/100/1000Base-T |
Network Standard | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
Switching Capacity | 11.2Gbps |
Packet Forwarding Rate | 8.33Mpps |
Forwarding Modes | Store and Forward |
MAC Address Table | 16K |
PoE Standard | 802.3af/at(PSE) |
PoE Power Method | End-span |
PoE Line Pair | 1/2(+),3/6(-) |
PoE Output Power | 54V DC , 30 watts max |
PoE Budget | 270 watts max |
Surge Immunity | 6KV Execute:IEC61000-4-5 |
ESD Immunity | 6KV Contact discharge |
8KV Air discharge | |
Execute:IEC61000-4-2 | |
Input Voltage | 100~240V AC;50/60Hz |
Power Consumption | <320W(Including PoE) |
Operating Temperature | -10℃~50℃ |
Storage temperature | -40℃~85℃ |
Humidity(Non-condensing) | 5%-95% |
Dimension(L×W×H) | 442mm×255mm×44.5mm |
Weight | 3.73kg |
Certification | CE, FCC, ROHS |
Software Features | |
Port Management | Support port enabling and disabling |
Support port speed settings | |
Support port full-duplex mode | |
Support IEEE802.3x flow control | |
Support port name modification | |
VLAN | Support of 4K VLAN |
supports 802.1Q VLAN protocol | |
Support VLAN based on port | |
Quality of Service | Support QoS Congestion Management |
Support 8 priority queues | |
Queue scheduling: SP, WRR, SP+WRR | |
Support 802.1p CoS/DSCP priority | |
Multicast Management | Support SNMPV1 / V2 / V3 protocols |
Support IGMP Snooping | |
POE management | Support Total Power Control |
Support PoE On Off | |
Support single-port 30W output,Output port and priority | |
Security Features | Supports IP, MAC, port, VLAN binding combinations |
Support MAC address auto-learning, aging and filtration | |
Support port isolation, port speed limit | |
Support RSTP | |
Support 5 groups of link aggregation | |
Support 802.1X | |
System Management | Web-based GUI and CLI management |
Support FTP / TFTP / HTTP load upgrade | |
Support traffic statistics | |
Support MAC address table query | |
Support IP address, DNS server modifications | |
Support user name and password modification | |
Support for history, log management | |
Support System Configuration Backup | |
Support to recover the default factory settings on reboot |
Brand: | Utepo |
---|---|
Seller SKU: | CC81RTUTP7216E-POE-L2 |
Origin: | Singapore |
Minimum order quantity: | 1 |
Date first listed on Sim Lim Square: | Mar 17, 2022 |
Model Number | UTP7216E-POE-L2 |
Downstream Ports | 16* 10/100Base-TX (PoE) |
Uplink Ports | 2*1000Base-X SFP Port and 2*10/100/1000Base-T |
Network Standard | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
Switching Capacity | 11.2Gbps |
Packet Forwarding Rate | 8.33Mpps |
Forwarding Modes | Store and Forward |
MAC Address Table | 16K |
PoE Standard | 802.3af/at(PSE) |
PoE Power Method | End-span |
PoE Line Pair | 1/2(+),3/6(-) |
PoE Output Power | 54V DC , 30 watts max |
PoE Budget | 270 watts max |
Surge Immunity | 6KV Execute:IEC61000-4-5 |
ESD Immunity | 6KV Contact discharge |
8KV Air discharge | |
Execute:IEC61000-4-2 | |
Input Voltage | 100~240V AC;50/60Hz |
Power Consumption | <320W(Including PoE) |
Operating Temperature | -10℃~50℃ |
Storage temperature | -40℃~85℃ |
Humidity(Non-condensing) | 5%-95% |
Dimension(L×W×H) | 442mm×255mm×44.5mm |
Weight | 3.73kg |
Certification | CE, FCC, ROHS |
Software Features | |
Port Management | Support port enabling and disabling |
Support port speed settings | |
Support port full-duplex mode | |
Support IEEE802.3x flow control | |
Support port name modification | |
VLAN | Support of 4K VLAN |
supports 802.1Q VLAN protocol | |
Support VLAN based on port | |
Quality of Service | Support QoS Congestion Management |
Support 8 priority queues | |
Queue scheduling: SP, WRR, SP+WRR | |
Support 802.1p CoS/DSCP priority | |
Multicast Management | Support SNMPV1 / V2 / V3 protocols |
Support IGMP Snooping | |
POE management | Support Total Power Control |
Support PoE On Off | |
Support single-port 30W output,Output port and priority | |
Security Features | Supports IP, MAC, port, VLAN binding combinations |
Support MAC address auto-learning, aging and filtration | |
Support port isolation, port speed limit | |
Support RSTP | |
Support 5 groups of link aggregation | |
Support 802.1X | |
System Management | Web-based GUI and CLI management |
Support FTP / TFTP / HTTP load upgrade | |
Support traffic statistics | |
Support MAC address table query | |
Support IP address, DNS server modifications | |
Support user name and password modification | |
Support for history, log management | |
Support System Configuration Backup | |
Support to recover the default factory settings on reboot |
