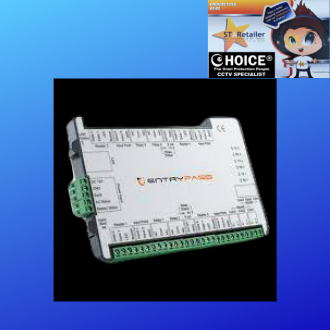

ENTRYPASS Control Panel EPS3150PSU Two Door Controller Box

CHOICECYCLE

ENTRYPASS Control Panel EPS3150PSU Two Door Controller Box

$800

Availability: In Stock

Condition: New

Add to Wishlist

Shipping:

to Ohio

Quantity:

10 in stock

Total:

Will be calculated after you select all properties

Buy Now Enquiry

Sold by Visit Store

CHOICECYCLE
Address:
1 Rochor Canal Road, #02-81 Sim Lim Square 188504
Singapore.
9853 4404

8198 5572
enquiry@choicecycle.com.sg

Add to Cart

Frequently bought together:

ENTRYPASS Control Panel EPS3150PSU Two Door Controller Box

Support Single / 2-In doors
Support Car Park Mode
Compatible with various Reader Technologies
RS-485 / RS-232 Communication Ports
Configurable Digital / Supervised inputs (4)
Quick Terminal Plug-in Connectors
Dynamic Operation Profile
Firmware Upgrade Via Server
Reader Output Control
AC Fail Monitoring
Battery Monitoring
Onboard & Cross-Board Door Interlocking
Support 5,000 Users And 10,000 Events Memory

Dimension	158mm (W) x 90mm (H)
MCU	32bits @ 60MHz
Memory	256K Flash Memory 32K SRAM (Buffer) 64Mbits Non-Volatile SPI Flash Memory (Storage)
Access Level	255 sets
Operating Temperature	0 °C to 40 °C
Card Holder	5,000
Event Transaction	10,000
Digital/Supervise Input	Max. 4 User Configurable (Door Sensor/Request-To-Exit/Fire Input/General Purpose)
Digital Output	Max. 2 Dry Contact Relay
Onboard Real Time Clock	Yes
Serial Communication Port	RS232/RS485 User Configurable
Power Protection	Resettable Fuse - 2.5A
Surge Protection	TVS - Up to 15KVA
Onboard LED Control	Power/Communication/ Event/Error
Onboard Buzzer	1
AC Fail Monitoring	Yes
Battery Monitoring	Yes (Firmware threshold control to shutdown control panel)
External Short Circuit Protection	At readers
Backup Battery	Yes, Apply to RTC only

1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)

3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.

4. Can issue e-Invoice for your accounting. (upon request)

ENTRYPASS Control Panel EPS3150PSU Two Door Controller Box

Technical Details:

Seller SKU:	CC81VBREP.S3150PSU
Origin:	Singapore
Minimum order quantity:	1
Date first listed on Sim Lim Square:	Mar 10, 2022

ENTRYPASS Control Panel EPS3150PSU Two Door Controller Box

Support Single / 2-In doors
Support Car Park Mode
Compatible with various Reader Technologies
RS-485 / RS-232 Communication Ports
Configurable Digital / Supervised inputs (4)
Quick Terminal Plug-in Connectors
Dynamic Operation Profile
Firmware Upgrade Via Server
Reader Output Control
AC Fail Monitoring
Battery Monitoring
Onboard & Cross-Board Door Interlocking
Support 5,000 Users And 10,000 Events Memory

Dimension	158mm (W) x 90mm (H)
MCU	32bits @ 60MHz
Memory	256K Flash Memory 32K SRAM (Buffer) 64Mbits Non-Volatile SPI Flash Memory (Storage)
Access Level	255 sets
Operating Temperature	0 °C to 40 °C
Card Holder	5,000
Event Transaction	10,000
Digital/Supervise Input	Max. 4 User Configurable (Door Sensor/Request-To-Exit/Fire Input/General Purpose)
Digital Output	Max. 2 Dry Contact Relay
Onboard Real Time Clock	Yes
Serial Communication Port	RS232/RS485 User Configurable
Power Protection	Resettable Fuse - 2.5A
Surge Protection	TVS - Up to 15KVA
Onboard LED Control	Power/Communication/ Event/Error
Onboard Buzzer	1
AC Fail Monitoring	Yes
Battery Monitoring	Yes (Firmware threshold control to shutdown control panel)
External Short Circuit Protection	At readers
Backup Battery	Yes, Apply to RTC only

1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)

3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.

4. Can issue e-Invoice for your accounting. (upon request)
