MODEL NUMBER MB540-KGNN-S00

SERIES MASTERBOX SERIES

SIZE MID TOWER

AVAILABLE COLOR(S) BLACK

MATERIALS STEEL, MESH, PLASTIC, TEMPERED GLASS

DIMENSIONS (L X W X H) 499.3 X 208.6 X 498MM (INCL. PROTRUSIONS), 488.3 X 208.6 X 498MM (EXCL. PROTRUSIONS)

VOLUME 51.87L (EXLC. PROTRUSIONS)

MOTHERBOARD SUPPORT MINI ITX, MICRO ATX, ATX, E-ATX*, (*UP TO 12” X 10.7” MOTHERBOARDS, MAY IMPACT CABLE MANAGEMENT FEATURE)

EXPANSION SLOTS 7

5.25" DRIVE BAYS 0

2.5" / 3.5" DRIVE BAYS (COMBO) 2

2.5" DRIVE BAYS 4

I/O PANEL 2X USB 3.2 GEN 1 TYPE-A, 1X USB 3.2 GEN 2 TYPE-C, 1X 3.5MM HEADSET JACK (AUDIO+MIC), 1X RESET/ARGB BUTTON

PRE-INSTALLED FANS - TOP N/A

PRE-INSTALLED FANS - FRONT N/A

PRE-INSTALLED FANS - REAR 1X 120MM 650~1800RPM SICKLEFLOW PWM ARGB

FAN SUPPORT - TOP 3X 120MM, 2X 140MM

FAN SUPPORT - FRONT 3X 120MM, 2X 140MM

FAN SUPPORT - REAR 1X 120MM

RADIATOR SUPPORT - TOP 120MM, 140MM, 240MM, 280MM, 360MM, (RECOMMENDED MAXIMUM THICKNESS -55MM)

RADIATOR SUPPORT - FRONT 120MM, 140MM, 240MM, 280MM, 360MM

RADIATOR SUPPORT - REAR 120MM

CLEARANCE - CPU COOLER 165MM/6.49"

CLEARANCE - PSU 180MM/7.08", 295MM/11.61" (W/ HDD CAGE REMOVED)

CLEARANCE - GFX 410MM/16.1"

DUST FILTERS TOP, FRONT, BOTTOM

POWER SUPPLY SUPPORT ATX

WARRANTY 2 YEARS

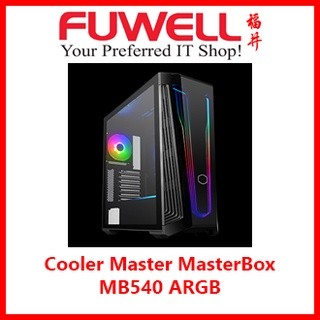

Specifications of Cooler Master MasterBox MB540 ARGB
